TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.
TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer. In addition, the capacity of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

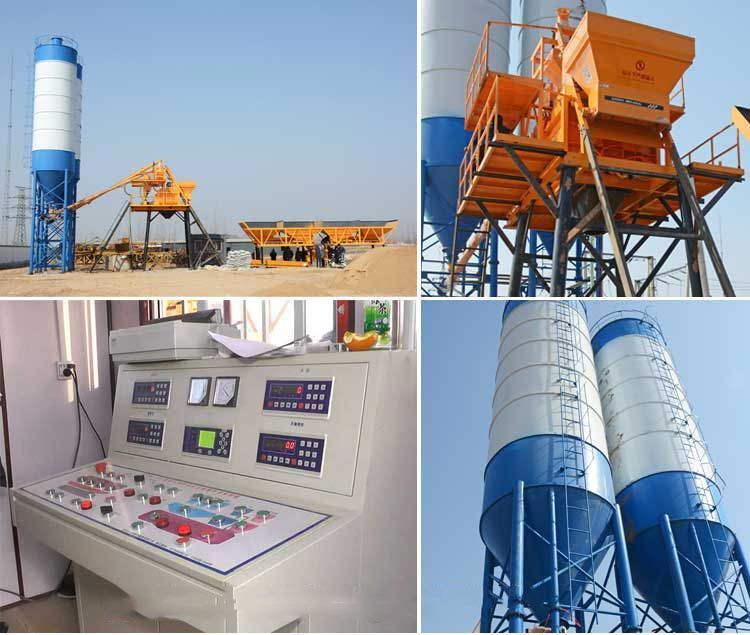

Skip Hoist Type Concrete Batching Plant are composed of mixing，batching and electrical control system etc. It is suitable for small-scale construction site.
Model HZS25 HZS35 HZS50 HZS75 Global parameter Maximum productivity (m3/h) 25 35 50 75 Discharging height (m) 1.5–3.8 1.6–3.8 4.2 4.2 Working cycle time(s) 72 72 72 72 Outline dimension(mm) 11693×13060×17245 12922×13000×17245 15689×12500×18704 17608×12500×18704 Total power (kw) 50 75 88 110 Mixer Model JS500 JS750 JS1000 JS1500 Batcher Model PLD800 PLD1200 PLD1600 PLD2400 Pneumatic system Air compressor 1.0–7 1.0–7 1.5–7 1.8–7 Discharge pressure(MPa) 0.8 0.8 0.8 0.8 Displacement (m3/min) 1.67 1.67 1.67 1.67 Motor power 5.5 5.5 7.5 11 Measurement system Aggregate weighing accuracy ±2% ±2% ±2% ±2% Cement weighing accuracy ±1% ±1% ±1% ±1% Water weighing accuracy ±1% ±1% ±1% ±1% Additive weighing accuracy ±1% ±1% ±1% ±1%
