Double Concrete Mixing Plant adopt two JS twin-shaft mixer, so it can mix dry-hard concrete, plastic concrete, lightweight aggregate and kinds of mortar. What’s more, due to its high working efficiency and large capacity output, the Double Concrete Mixing Plant is widely used in large and medium sized construction, road, bridge, railway and others. In short, the Double Concrete Mixing Plant is ideal equipment for users to buy.

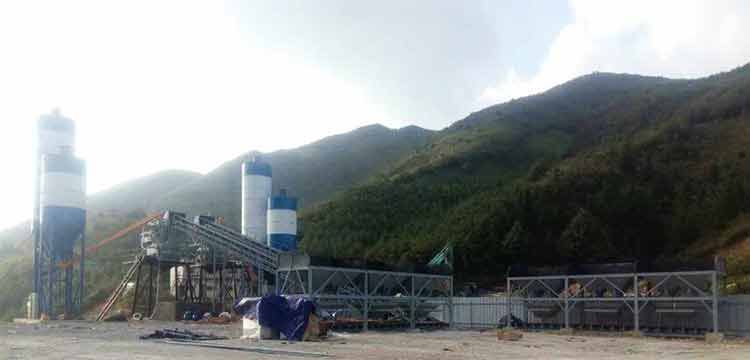

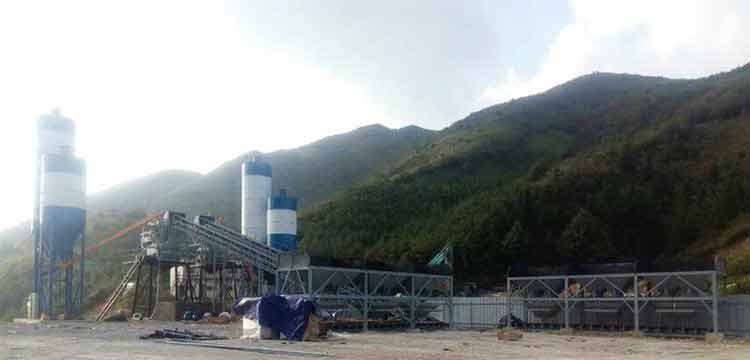

In the figure, two HZS60 mixing plants with a output of 120m cubed /h are shown.it is in kaliningrad of Russia.

Theory Capacity: 60m³/h
It is composed of mixing，batching and electrical control system etc.

The Mixing System: The mixer is JS1000 twin horizontal shaft compulsory mixer with high capacity but less time.

Batching System: PLD1600 batching machine, the batching aggregates can be 3-5types , 6m³ Basic Storage Bins Volume，1600L Weighing Bins Volume.

Weighing system: The system is with buffering device auto compensation function and very high weighing accuracy.

The Quantity of cement silo and screw conveyor can be choosed by users.
Modular Design is easy to install and remove.

Features of Double Concrete Mixing Plant:

1 The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.

2 With compact structure of modular organization, which can meet the requirements of container transport, and is convenient for transport and quick installation dis-assembly.

3 Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

4 Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with over voltage warning and low oil level warning, safe and reliable.
