Model：HZS180

Maximum productivity(m3/h)： 180

Discharging height(m)： 4.2

Working cycle time(s)： 60

Outline dimension(mm)： 62900×15000×19500

Total power (kw)： 288

Total weight： 70T

with high performance cost ratio for construction projects

180m³/h Concrete Batching Plant

  • TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.
    TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer. In addition, the capacity  of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

    HZS180 Stationary Type Concrete Batching Plant are mostly preferred for high capacity concrete production requirements for special projects and for the projects which will take a long time in the same location.

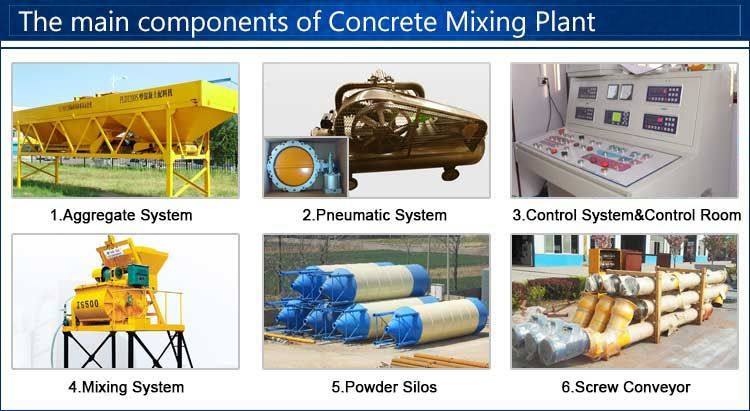

    It is composed of mixing, batching and electrical control system etc.

    The Mixing System: The mixer that is JS3000 twin horizontal shaft compulsory mixer with high capacity but less time, the belt feeding and adjustable hydraulic discharge door.

    Batching System: PLD4800/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.

    Weighing system: The system has buffering device auto compensation function and very high weighing accuracy.

    The Quantity of cement silo and screw conveyor can be choosed by users.
    Modular design can save the space and easy to install and remove .
    All above are the features of HZS180 .It really has the high cost performance.


  • Model HZS60 HZS90 HZS120 HZS180
     Global parameter (m³/h) Maximum productivity 60 90 120 180
     Discharging height(m) 4.2 4.2 4.2 4.2
     Working cycle time(s) 60 60 60 60
     Outline dimension(mm) 58445×12376× 18704 58555×12376× 18704 60210×13700× 18704 62900×15000× 19500
     Total power (kw) 105 145 210 288
     Mixer Model JS1000 JS1500 JS2000 JS3000
     Batcher Model PLD1600 PLD2400 PLD3200 PLD4800
     Pneumatic system Air compressor 1.5–7 1.8–7 1.8–7 1.8–7
     Discharge pressure(MPa) 0.8 0.8 0.8 0.8
     Displacement(m³/min) 1.67 1.67 1.67 1.67
     Motor power 7.5 11 11×2 11×2
     Measurement system Aggregate weighing accuracy ±2% ±2% ±2% ±2%
     Cement weighing accuracy ±1% ±1% ±1% ±1%
     Water weighing accuracy ±1% ±1% ±1% ±1%
     Additive weighing accuracy ±1% ±1% ±1% ±1%
     Total weight 36T 46T 52T 70T
