Model:HZS75

Maximum productivity(m³/h): 75

Discharging height(m): 4.2

Working cycle time(s): 72

Outline dimension(mm): 17608×12500×18704

Total power (kw): 110

Total weight: 37T

with high performance cost ratio for construction projects

75m³/h Concrete Batching Plant
  • TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

    TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h with one mixer. In addition, the capacity of Stationary Concrete Batching Plants can be from 240 m³/h to 360 m³/h with double mixers on the same chassis.

    HZS75 concrete batching plant is one of the best-selling plant. It is suitable for small-scale construction site.
    Theory Capacity: 75m³/h

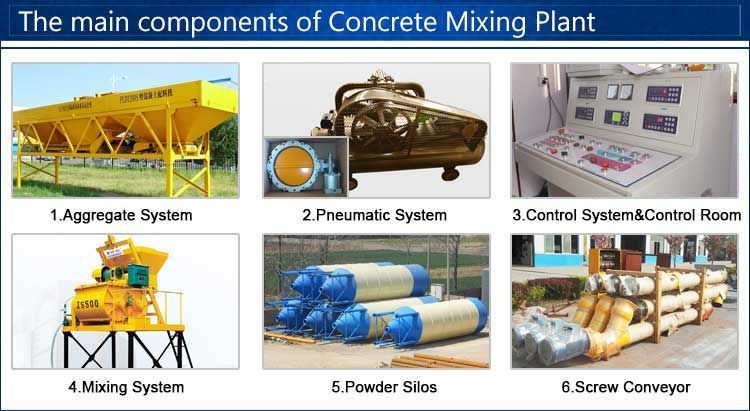

    It is composed of mixingmaterial batching and electrical control system etc.


    Host using JS 1500 twin-shaft forced type concrete mixer good mixing quality and high efficiency.

    Hopper feeder ensures small layout room under limited cost making whole plant easily working effective.

    Electrical control system main components are all imported reliable performance easy operation the print function.

    Aluminum alloy butterfly valve & accurate weighing device work automatically with PLD1600 feeder/PLC+PC system.



    The Quantity of cement silo and screw conveyor can be choosed by users.
    Modular Design is easy to install and remove.
    All above features spark HZS75 automatically. It also has best cost performance.


  •

    Model              HZS75
     Global parameter (m³/h)              Maximum productivity              75
     Discharging height(m)              4.2
     Working cycle time(s)              72
     Outline dimension(mm)              17608×12500×18704
     Total power (kw)              110
     Mixer              Model              JS1500
     Batcher              Model              PLD2400
     Pneumatic system              Air compressor              1.8–7
     Discharge pressure(MPa)              0.8
     Displacement(m³/min)              1.67
     Motor power              11
     Measurement system              Aggregate weighing accuracy              ±2%
     Cement weighing accuracy              ±1%
     Water weighing accuracy              ±1%
     Additive weighing accuracy              ±1%
     Total weight              37T
