Double Concrete Mixing Plant

  • Double Concrete Mixing Plant adopt two JS twin-shaft mixer, so it can mix dry-hard concrete, plastic concrete, lightweight aggregate and kinds of mortar. What’s more, due to its high working efficiency and large capacity output, the Double Concrete Mixing Plant is widely used in large and medium sized construction, road, bridge, railway and others. In short, the Double Concrete Mixing Plant is ideal equipment for users to buy.

    Features of Double Concrete Mixing Plant:

    • The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.

    • With compact structure of modular organization, which can meet the requirements of container transport, and is convenient for transport and quick installation dis-assembly.

    • Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

    • Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with over voltage warning and low oil level warning, safe and reliable.

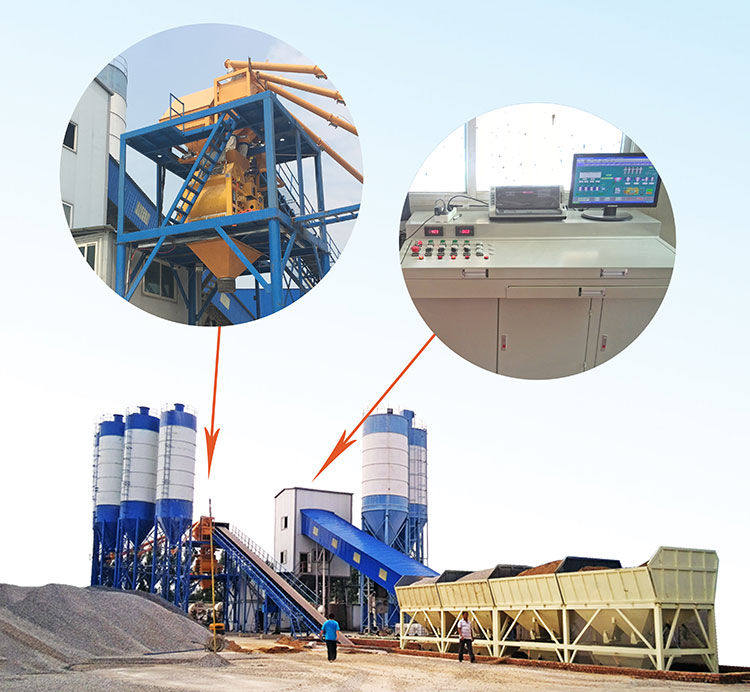

    20181010163038788.jpg@!w1200

    20181010151953955.jpg@!w1200


  • Model HZS25*2 HZS35*2 HZS50*2 HZS75*2 HZS60*2 HZS90*2 HZS120*2 HZS180*2
     Global parameter

     Maximum productivity (m3/h)

    		 50 70 100 150 120 180 240 360

     Discharging height (m)

    		 1.5–4.2 1.6–4.2 4.2 4.2 4.2 4.2-4.5 4.5 4.5

     Working cycle time (s)

    		 72 72 72 72 60 60 60 60

     Total power (kw)

    		 50*2 75*2 88*2 110*2 105*2 145*2 210*2 288*2
     Mixer Model JS500*2 JS750*2 JS1000*2 JS1500*2 JS1000*2 JS1500*2 JS2000*2 JS3000*2
     Batcher Model PLD800*2 PLD1200*2 PLD1600*2 PLD2400*2 PLD1600*2 PLD2400*2 PLD3200*2 PLD4800*2
     Pneumatic system Air compressor 1.0–7 1.0–7 1.5–7 1.8–7 1.5–7 1.8–7 1.8–7 1.8–7

     Discharge pressure (MPa)

    		 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8

     Displacement (m3/min)

    		 1.67 1.67 1.67 1.67 1.67 1.67 1.67 1.67
     Motor power 5.5*2 5.5*2 7.5*2 11*2 7.5*2 11*2 11×2*2 11×2 *2
     Measurement system

     Aggregate weighing accuracy

    		 ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2%

     Cement weighing accuracy

    		 ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%

     Water weighing accuracy

    		 ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%

     Additive weighing accuracy

    		 ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
     Total weight 32T 46T 56T 74T 72T 92T 104T 140T
