Two-way weighing.

Modular weighing platform.

Automatic reset force transmission mechanism.

Digital display weight.

Automatic zero tracking.

No foundation pit or shallow foundation pit installation.

Unique scale body design, easy to install and transport.



Electronic Truck Scale

  • SCS digital electronic truck scale (wagon balance) is a new generation of steel structure scale, which is designed with U-shaped cold-formed channel steel, grouped into multiple closed cavities, so that the truck scale (wagon balance) platform is in overall steel, various performance indexes such as bending resistance and partial compression of the table top have been greatly improved.

    Widely used in inbound and outbound materials, inventory measurement, production monitoring and data management for ports, factories, mixing plant, freight yards, storage terminals, workshops, warehouses, etc. It is suitable for weighing and measuring vehicles such as trucks, trailers, semi-trailers and container vehicles.


    Foundation Making:

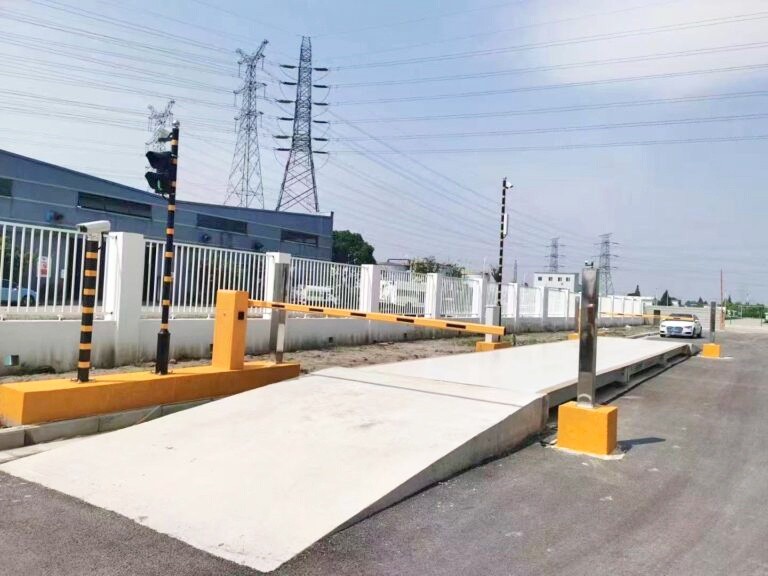

    1. Platform scale construction (without foundation pit)

    Advantages: easy to drain, maintain and clean up.

    Disadvantages: large area occupied.

    2. Underground balance construction (with foundation pit)

    Advantages: save space, good surface looking.

    Disadvantages: not easy to drain, repair and clean, manhole safety hazard.


    Components of electronic truck scale:

    1. Sensor

    2. Weighing display

    3. Central controller

    4. External display

    5. Signal line

  • List of SCS standard vehicle scale specifications and model:

    Model

    Accuracy

    Weighing platform spec. (m)

    Maximum weighing (T)

    Minimum weighing (T)

    Resolation (kg)

    SCS-10

    III

    2.2×5

    10

    100

    5

    SCS-20

    III

    2.5×5

    20

    100

    5

    SCS-30

    III

    2.5×6

    30

    100

    5

    SCS-40

    III

    3×6

    40

    400

    10

    SCS-50

    III

    3×8

    50

    400

    10

    SCS-60

    III

    3×9

    60

    400

    10

    SCS-80

    III

    3×10

    80

    400

    20

    SCS-100

    III

    3×12

    100

    1000

    20

    SCS-100

    III

    3×14

    100

    1000

    20

    SCS-100

    III

    3×15

    100

    1000

    20-50

    SCS-100

    III

    3×16

    100

    1000

    20-50

    SCS-120

    III

    3×16

    120

    1000

    20-50

    SCS-120

    III

    3×18

    120

    1000

    20-50

    SCS-150

    III

    3×16

    150

    1000

    50

    SCS-150

    III

    3×18

    150

    1000

    50

    SCS-200

    III

    3×16

    200

    1000

    50

    SCS-200

    III

    3×18

    200

    1000

    50


    Detailed technical parameters are as follows:

    Specifications Model

    ZCS/SCS  5t-300t

    Maximum Weighing

    300t

    Minimum Weighing

    200kg

    Test Index

    20kg

    Actual scale value

    10kg

    Safety Overload

    120%FS

    Ultimate Overload

    150%FS

    Table Thickness

    customized

    Scale Body Structure

    U-beam structure is made of Q235A carbon steel

    Main Beam Specification

    200mmU-300mm, U-shaped steel beam, carbon steel Q235A material

    Foundation Form

    Without foundation pit, shallow foundation pit

    Accuracy Class

    C3, OIML, III (high precision and sensitivity)

    Power Supply

    220VAC(--15%~+10%), 50HZ±2%
