JS3000 Concrete Mixer

Model： JS3000

Discharging capacity： 3000L

Drum capacity： 4800L

Productivity (m3/h )： ≥150

Max.aggregate size (Cobble/Crushed Stone)(mm)： ≤80/120

Operation Recycle Time(S)： 60

Dimension Transport State (mm)： 4050*2680*2150

Weight(kg)： 9200

JS3000 Concrete Mixer

JS3000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 180m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.
It can work independently or in HZS180 concrete batching plant with PLD4800 batching machine.
1. Made of high-resistant manganese steel Great power & High productivity with large capacity.
2. Four pump cores supply oil directly to shafts' end lower failure rate of lubricating system .

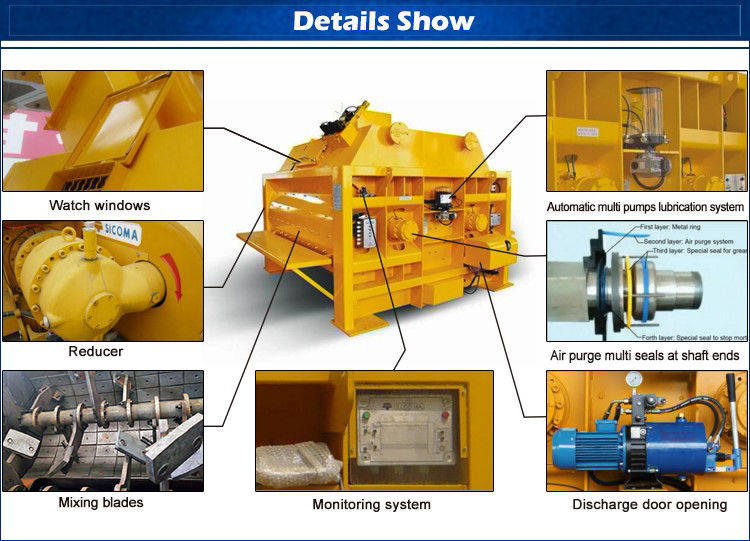

3. Easy to observe with simple design.

Model	JS3000
Discharging capacity	3000L
Drum capacity	4800L
Productivity (m3 /h )	≥150
Max.aggregate size(Cobble/Crushed Stone)(mm)	≤80/120
Operation Recycle Time(S)	60
Dimension Transport State (mm)	405026802150
Weight(kg)	9200
Mixing Blade Rotate Speed	21r/min
Mixing Blade Number	2x10
Mixing Motor Model	Y280L-6
Mixing Motor Power	2x55
Discharging Height	4300mm
