Model： JS500
Discharging capacity： 500L
Drum capacity： 800L
Productivity(m3/h)： ≥25
Max.aggregate size(Cobble/Crushed Stone)(mm)： ≤60/80
Operation Recycle Time(S)： 72
Dimension Transport State (mm)： 3050*2530*2680
Dimension Work State (mm)： 4461*3050*4180
Weight(kg)： 4000

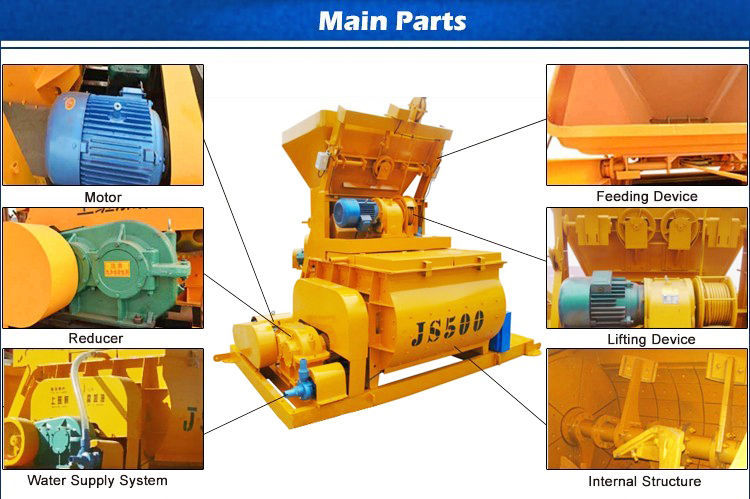

JS500 Concrete Mixer

  • JS500 concrete mixer can mix dry hard concrete plastic concrete flowing concrete light weight aggregate concrete and various mortar.

    It could work independently or in HZS25 concrete batching plant with PLD1200. It is widely used in various construction projects with adjustable discharge heights.

    Advantages:

    1. As tank body and machine bracket are fixed mixing axle can avoid withstanding the pressure from material and dead weight of tank which expand the service life of mixing axle;
    2. Adopted with electric discharging door to get rid of the disadvantage of any material left by using rotary discharging door; it can offer quick and tidy discharging operation.


  •  Model  JS500
     Discharging capacity  500L
     Drum capacity  800L
     Productivity (m3 /h )  ≥25
     Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤60/80
     Operation Recycle Time(S)  72
     Dimension Transport State (mm)  3050*2530*2680
     Dimension Work State (mm)  4461*3050*4180
     Weight(kg)  4000
     Mixing Blade Rotate Speed  35r/min
     Mixing Blade Number  2x7
     Mixing Motor Model  Y180M-4
     Mixing Motor Power  18.5kw
     Winch Motor Model  YEZ132S-4
     Winch Motor Power  5.5kw
     Water Pump Motor Model  BL12-12-1.1
     Water Pump Motor Power  1.1kw
     Discharging Height  3800mm
