Model: XF-80
Sieving Capacity :10-20
Separate Stone Size: Φ>5
Separate Sand Size :Φ1-5
Total Motor Power(kw):10
Mixing Vehicle Quantity: <10
Host Weight :2730
Host Outline Dimension(m): 5.1×1.57×2.00
Total Weight :5T

XF-80 Concrete Recycling Systems
  • Concrete Recycling Plant is mainly used for sand and gravel separation equipment in rivers, reservoirs, coal yards and batching plant. It is mainly used for the cleaning, mixing, and separation, collection and reuse of sand, stone and mud in the concrete batching plant.

    TRUSEEN Concrete Reclaimer is the core equipment of the concrete recycling system. It is mainly used to cleanse and recycle the sewage from the concrete mixer truck and make the gravel in the residual concrete reused. The machine adopts foreign advanced concrete recycling technology, combines the characteristics of roller separation and spiral screening separation, and has made a lot of improvements on the wearing parts. It has simple operation, intelligent control, and the whole process is unattended and convenient. Fast, save you a lot of manpower, material resources, financial resources.

    The concrete mixer truck wash system can be divided into one washing spaces and double washing spaces, which can be increased or decreased according to different requirements, and can work up to five washing spaces at the same time.


    Advantage:

    1. Reducing damage to the environment and saving a lot of building materials;

    2. PLC electronic control system box, using advanced European technology, can achieve full automation;

    3. The sand is completely separated at one time;

    4. Truck mixer wash water can be recycled and zero discharge of sewage;

    5. Screen installation is easy and not easy to corrode and block;

    6. The wall thickness of the barrel is 8-10mm, which is not easy to rust and corrode even in the open air environment.

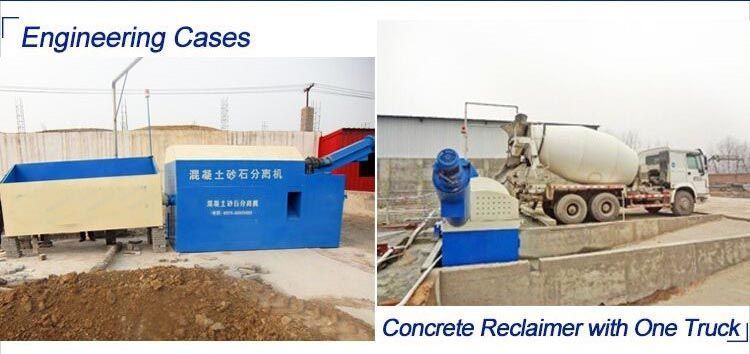

    20181023084953695.jpg@!w1200



  •  Model  XF-80
     Sieving Capacity  10-20
     Separate Stone Size  Φ>5
     Separate Sand Size  Φ1-5
     Total Motor Power(kw)  10
     Mixing Vehicle Quantity  <10
     Host Weight  2730
     Host Outline Dimension(m)  5.1×1.57×2.00
     Total Weight  5T
