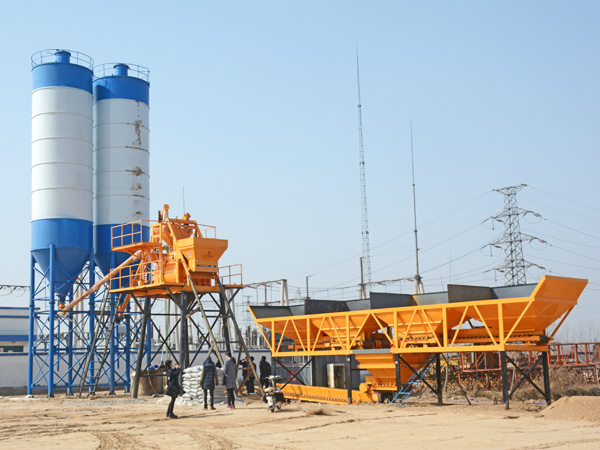

HZS35 concrete batching plant developed with advanced international technology and our own experience, the modular concrete batching plant is composed of easily-combined separate modules. The twin-shaft mixer mixes evenly and efficiently. Driven by PLC, the operation is easy and automatic, which qualifies it for large-scale infra structure projects, e.g. the construction of roads, bridges, airports and ports.
Main technical parameters of HZS35 concrete batching plant:
Models:HZS35
Production (m³/hr):35
Mixer Models:JS750
Mixing Power (KW):2×18.5
Output (m³):0.75
Aggregate Size (mm):≤60
Hopper Capability(m³):13
Hopper Quantity:4
Mixing Cycle (S):72(60)
Conveyor Capability (t/hr):200
Scope and Precision of Weighing Aggregate (kg):1500±2%
Cement (kg):450±1%
Fly ash (kg):150±1%
Water (kg):150±1%
Additive(kg):20±1%
Total Power (KW) (without screw conveyor):≈72
Discharge height (m):≥3.8
 More technology problem or further cooperation contact our Email : admin@truseen-machinery.com
